In the precision manufacturing arena, “precision” and “efficiency” have always been the core keys to enterprise breakthroughs. Tool measurement, as the “first line of defense” in the machining process, directly determines the success or failure of the production chain. In high-end manufacturing fields such as automotive parts, precision molds, and aerospace components, the requirements for machining precision have approached the micron level. When errors from manual tool setting, the hidden costs of equipment wear and tear, and the waste of non-machining time become bottlenecks restricting enterprise upgrades, Qidu Metrology, deeply rooted in the field of CNC machine tool in-machine measurement, uses the DTS200 one-way tool setter as a platform to break through industry pain points with technological innovation, redefining the “precision baseline” and “efficiency ceiling” of precision machining.
The True Pain Points of Precision Manufacturing: More Than Just “Insufficient Precision”
The core dilemma faced by most manufacturing enterprises is not simply a lack of high-precision measuring tools, but rather a vicious cycle of “precision, efficiency, and cost”: pursuing high precision often sacrifices machine setup efficiency and increases labor costs; pursuing high production capacity easily leads to uncontrolled precision and soaring scrap rates; attempting to control costs may result in a vicious cycle of “frequent replacements and repeated adjustments” due to insufficient equipment durability. More importantly, as manufacturing upgrades towards intelligent and unmanned operations, the poor compatibility, insufficient protection, and delayed after-sales service of traditional tool setters further amplify production risks—old machine tools cannot be adapted to new equipment, complex workshop conditions cause frequent instrument malfunctions, and overseas customers face difficulties in timely after-sales response. These hidden pain points are quietly eroding the core competitiveness of enterprises.
Qidu Metrology has been deeply involved in the industry for many years, possessing a profound understanding of the upgrading needs of domestic and international manufacturing enterprises. Abandoning the product logic of “simply piling up parameters,” Qidu focuses on “solving actual production pain points and creating long-term value,” developing the DTS200 unidirectional tool setter. This product deeply integrates micron-level precision, industrial-grade durability, full-scenario adaptability, and one-stop service, ensuring that every performance aspect precisely meets enterprise needs. Breaking the “trilemma,” it achieves a triple breakthrough of “stable precision, high efficiency, and cost-effectiveness.”
Core Breakthroughs: How the Tool Setter DTS200 Achieves Sub-Micron Precision Consistency
For precision tool setters, “precision” is not an isolated parameter, but a system capability supported by materials, design, algorithms, and quality control. The reason Qidu Metrology’s DTS200 can achieve “repeatability accuracy consistently less than 0.001 mm” lies in the relentless pursuit of excellence in every core component, making micron-level precision the norm, not a coincidence.
Material Science: Using Special Alloys to Solidify Durability
As the core contact component of a tool setter, the material of the cutting tool directly determines its accuracy stability and service life. Qidu Metrology breaks away from the industry’s “cost-first” inertia, using a special heat-treated alloy material regardless of cost. This not only possesses extremely high hardness and wear resistance but also withstands the impact and wear caused by frequent tool contact—even after hundreds of thousands of tool setting operations, the geometry and surface precision of the cutting tool remain unchanged, fundamentally avoiding accuracy degradation caused by cutting tool deformation and completely solving the pain point of traditional tool setters: “short-term accuracy, long-term inaccuracy.” For companies engaged in long-term mass production, this means no need for frequent cutting tool replacements, reducing downtime for adjustments, and avoiding batch scrap due to accuracy drift, indirectly reducing production costs.
Human-Centered Design: Lowering Operational Error
Human operation error is one of the important factors affecting tool setting accuracy. The DTS200 innovatively employs a large-diameter 20mm tool setting face. Compared to traditional small-diameter tool setting faces, this not only expands the tool contact area, making tool setting more relaxed and convenient, but also effectively compensates for measurement errors caused by minute tool tip offsets. Even with varying operator skill levels, precise tool setting can be achieved, significantly reducing reliance on manual labor, making it particularly suitable for consistency control in mass production.
Smart Algorithms: Balancing High-Speed Response with Stability
In precision machining, “accuracy” and “speed” are often difficult to balance—pursuing high accuracy may slow down measurement speed and extend non-machining time; pursuing fast response may affect accuracy stability. The DTS200 incorporates a high-sensitivity photoelectric sensor, coupled with a self-optimized signal processing algorithm, achieving the triple advantages of “instantaneous triggering, rapid processing, and stable output”: the tool setting signal capture response time is extremely short, significantly reducing non-machining standby time and improving production efficiency; at the same time, the algorithm effectively filters interference signals in the workshop environment, ensuring the stability of measurement results and avoiding accuracy errors caused by signal fluctuations, achieving both “fast measurement” and “accurate measurement.”
Full-Scenario Adaptability: Engineered for Diverse Manufacturing Environments
Today, manufacturing enterprises face increasingly diverse production scenarios—from small-batch customization of high-precision molds to large-scale mass production of automotive parts; from automated production lines with brand-new intelligent machine tools to the upgrading and transformation of older machine tools; from routine working conditions in domestic workshops to complex needs of overseas customers. Based on the R&D concept of “full-scenario adaptation,” the DTS200 breaks through the limitations of traditional tool setters’ “single adaptability,” allowing a single device to meet the needs of multiple scenarios.
In terms of compatibility, the DTS200 is perfectly compatible with mainstream global CNC systems such as FANUC, Mitsubishi, and Siemens, requiring no large-scale modification of machine tools. Whether installing on a new machine or upgrading an existing one, it can be quickly integrated, significantly reducing upgrade costs for enterprises. Regarding installation methods, it offers multiple options such as tool post mounting, worktable mounting, and dedicated bracket mounting, flexibly adapting to various CNC machine tools such as lathes, milling machines, and machining centers, meeting the needs of different machine tool layouts.

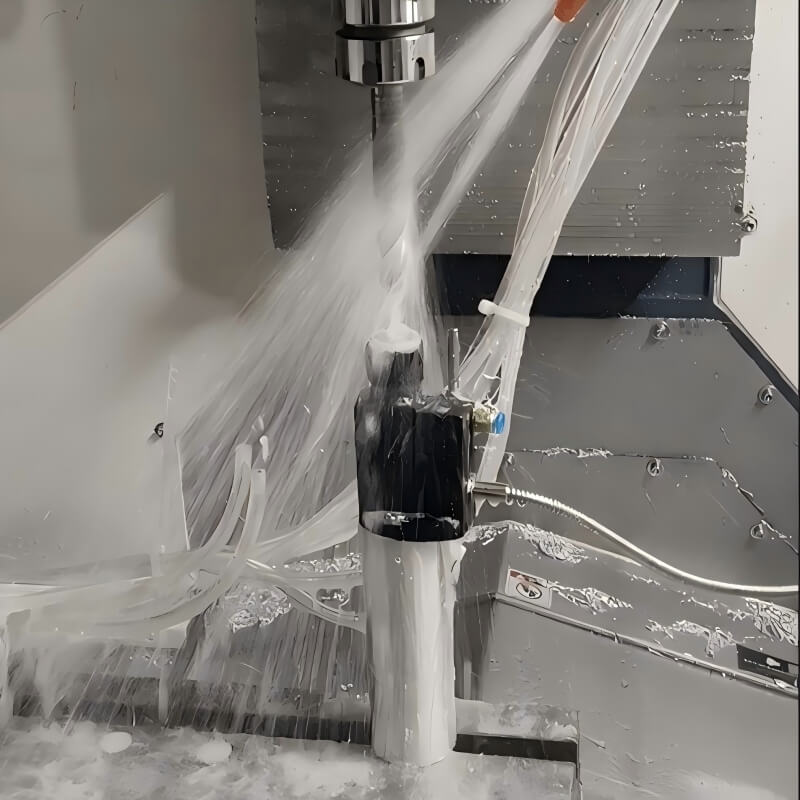

In terms of environmental adaptability, the DTS200 features a fully enclosed, robust housing design, providing excellent dustproof, coolant splash protection, and vibration resistance. It can easily handle complex working conditions such as oil stains, metal shavings, humidity, and vibration, ensuring the long-term stable operation of internal precision components. For manufacturing companies operating in harsh environments, this translates to a significantly reduced equipment failure rate, lower maintenance costs and downtime losses, and guaranteed production continuity.
Furthermore, the DTS200 incorporates a built-in tool breakage detection function. It monitors tool status in real time and immediately issues an alarm signal upon detecting tool breakage, excessive wear, or other abnormalities, preventing further processing with faulty tools, reducing scrap and rework costs, and further strengthening the “defense line” for production precision.
Beyond the Product: Comprehensive Support and Service Confidence
For manufacturing companies, choosing a precision measuring device is not just choosing a tool, but choosing a long-term, reliable partner. Qidu Metrology, a professional manufacturer of in-machine measurement products for CNC machine tools, differs from the industry’s “only sell products, no service” model. It has built a full-chain service system encompassing R&D, production, sales, and after-sales service. With professionalism and responsibility, it provides comprehensive support for the production upgrades of domestic and international customers, which is the core strength behind the market recognition of the DTS200.
On the R&D side, Qidu Metrology boasts a professional technical R&D team with years of experience in the field of CNC machine tool measurement. Focusing on industry pain points and technical bottlenecks, they continuously promote product iteration and upgrades. They not only provide standardized DTS200 tool setters but also offer customized measurement solutions based on individual customer needs, adapting to the specific requirements of different industries and processes. On the production side, the company has established a rigorous end-to-end quality control system. Core components are sourced from strictly certified high-quality supply chains, undergoing 100% inspection upon arrival. The production process utilizes a Class 1000 cleanroom and precision assembly processes, with key workstations operated by experienced senior technicians to ensure accuracy at every stage of assembly. Before leaving the factory, each DTS200 undergoes extensive continuous stability testing and metrological calibration, repeatedly compared using nationally certified standards. All test data is recorded, enabling product quality traceability and ensuring that every piece of equipment leaving the factory meets or exceeds design standards.
On the service side, Qidu Metrology has built an integrated domestic and international after-sales service network. Whether it’s installation, commissioning, technical training, and maintenance for domestic customers, or logistics, on-site service, and remote technical support for overseas customers, we can respond quickly and resolve issues efficiently. We deeply understand that for manufacturing enterprises, the normal operation of equipment directly affects production progress. Therefore, we always adhere to the service philosophy of “customer first,” prioritizing after-sales response speed and service quality, ensuring that every customer can “buy with confidence and use with peace of mind.”
Value Coexistence: Choosing the Tool Setter DTS200 for Long-Term Competitiveness
In today’s increasingly competitive manufacturing industry, a company’s core competitiveness has long since shifted from “scale advantage” to “precision advantage” and “efficiency advantage.” Choosing the Qidu Metrology DTS200 unidirectional tool setter is not just a simple equipment purchase for enterprises, but a comprehensive upgrade of production efficiency, product quality, and cost control—a strategic investment in long-term competitiveness.
For high-end manufacturing enterprises, the micron-level precision of the DTS200 enables them to reliably undertake high-precision orders, break through technological barriers in the high-end market, and enhance product added value and market competitiveness. For mass production enterprises, the DTS200’s rapid response and stability significantly shorten setup time, increase production capacity, and simultaneously reduce scrap rates and labor costs, maximizing the benefits of large-scale production. For enterprises requiring upgrades, the DTS200’s high compatibility and ease of installation help them upgrade old machine tools at the lowest cost, achieving a dual improvement in precision and efficiency without replacing the entire machine. For overseas customers, Qidu Metrology’s one-stop service and stable product quality effectively solve after-sales challenges in cross-border procurement, ensuring stable production globally.
Conclusion: Building a Foundation with Precision, Growing with Craftsmanship
There are no shortcuts to upgrading precision manufacturing. Only by refining products with craftsmanship, solving pain points with technology, and safeguarding development with service can we achieve symbiotic value with enterprises. Qidu Metrology has always adhered to the core principles of “professionalism, precision, and reliability,” deeply cultivating the field of in-machine measurement for CNC machine tools. From probes and tool setters to styli and related components, every product undergoes rigorous refinement; from R&D and production to after-sales service, every step upholds its quality commitment.
The DTS200 unidirectional tool setter is not only a high-precision measuring tool, but also a vehicle for Qidu Metrology to empower manufacturing enterprises to upgrade, a powerful tool for enterprises to overcome efficiency and quality challenges. With micron-level precision, it safeguards the perfection of every machining process; with industrial-grade durability, it accompanies every step of enterprise growth; and with full-scenario adaptability, it adapts to every possibility in the manufacturing industry.
In the future, Qidu Metrology will continue to deepen technological innovation, focusing on the upgrading needs of domestic and foreign manufacturing enterprises, launching more high-quality, cost-effective in-machine measurement products, and providing one-stop service encompassing R&D, production, sales, and after-sales service to help more enterprises overcome technical bottlenecks, enhance their core competitiveness, and steadily advance in the precision manufacturing field, jointly building a new future of intelligent manufacturing.
Qidu Metrology – a professional manufacturer of CNC touch probes, tool setters, styli and components, empowering intelligent manufacturing with precision and winning trust with service!
