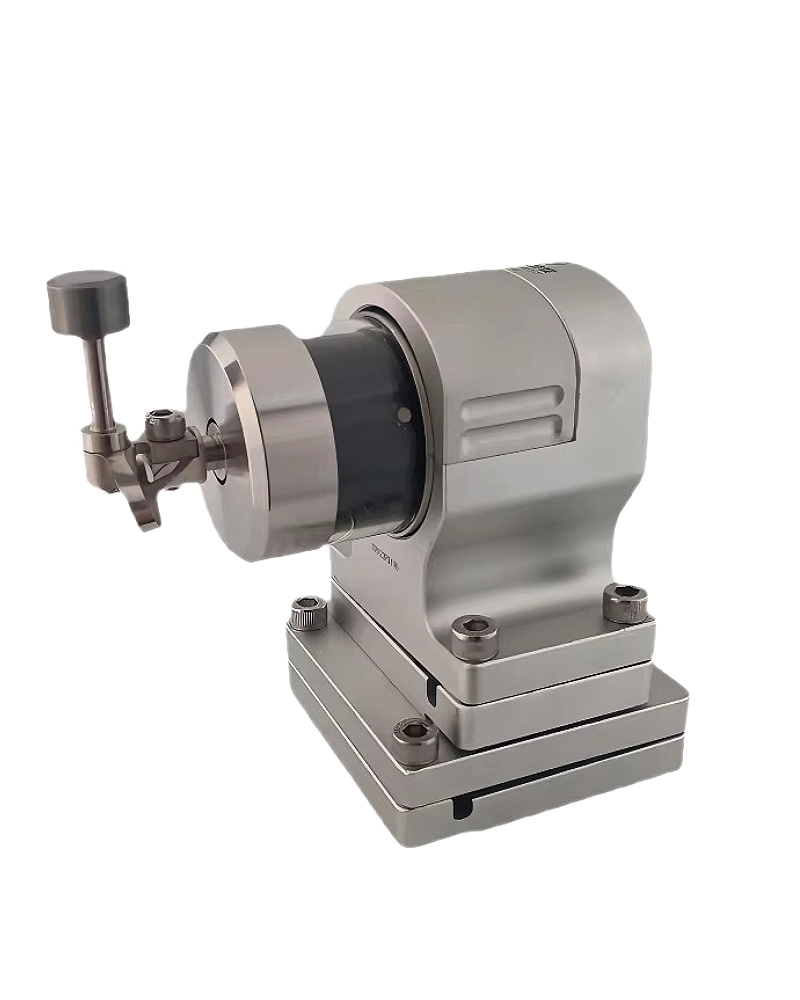

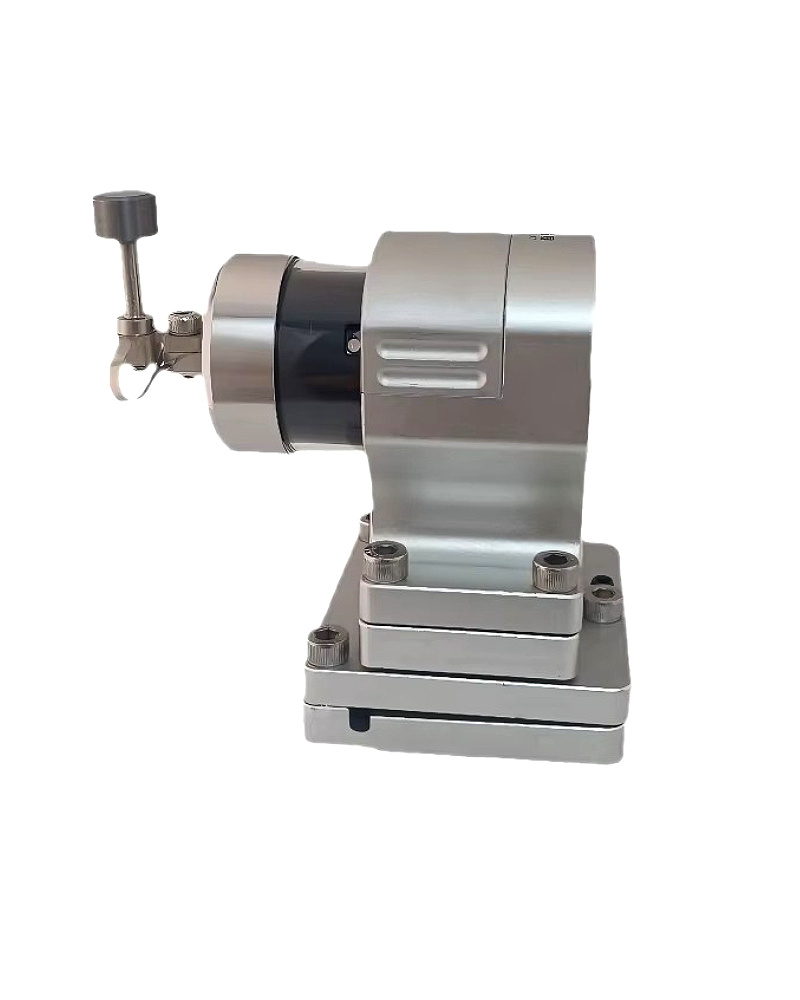

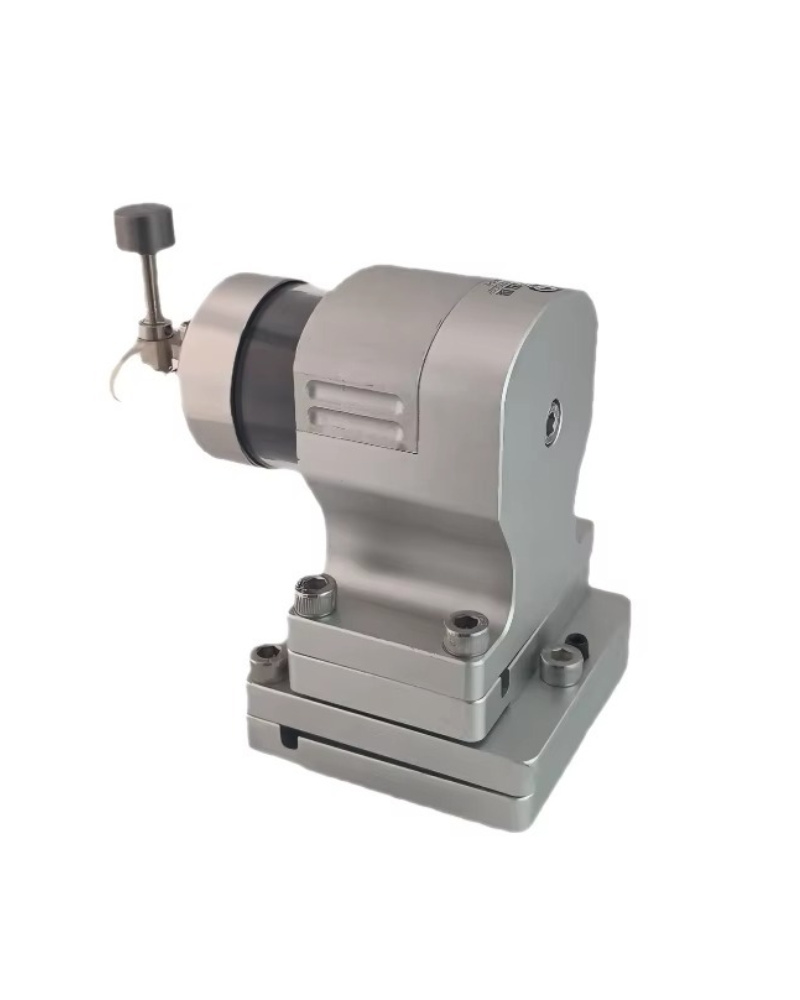

CNC Tool Length Setter DMTS-R
Radio Tool Setter with M Code Electronic Control
Radio Tool Setter for ±X ±Y ＋Z Axis
Misura della lunghezza dell'utensile
▪ Tool diameter measurement
▪ Automatic wear compensation
▪ Tool breakage detection
Radio Tool Setter for ±X ±Y ＋Z Axis
Misura della lunghezza dell'utensile
▪ Tool diameter measurement
▪ Automatic wear compensation
▪ Tool breakage detection

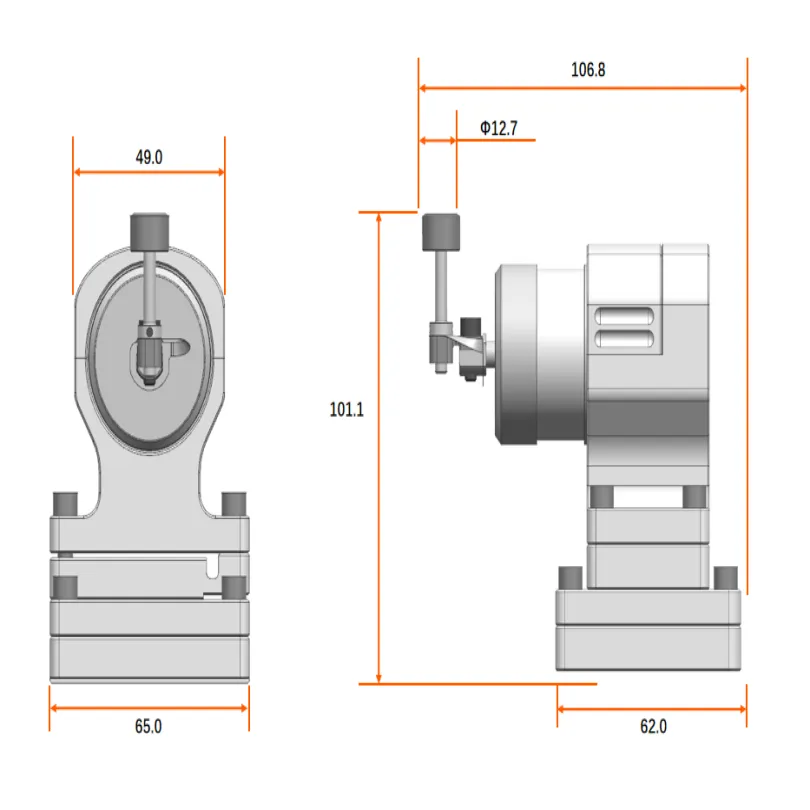

| MODEL | DMTS-R |
| Trigger direction | ±X, ±Y,+Z |
| Output | A: NO |
| Pre-stroke | None |
| Stroke | XY plane:+/-15°, Z: 6.2mm |
| Repeatability precision(2σ) | ≤1um (speed: 50-200mm/min) |
| Trigger life | ＞10million times |
| Sigillatura | IP68 |
| Forza del grilletto | XY plane: 0.4-0.8N, Z:5.8N |
| On/Off | Codice M |
| Channels Swift | Automatic Swifting |
| Signal | Jump/Error Alert/ Low Voltage/ Signal Strength |
| Signal transmission | Radio |
| Touch pad material | Super-hard alloy |
| Surface treatment | Grinding |
| Contact Nominal Value | DC 24V,≤10mA |
| Protetive tube | 3m, minimum radius 7mm |
| LED light | Normal: OFF; active: ON |
Features of CNC Tool Length Setter
The M code electric control
The M code turns on the probe, and the probe communicates with the receiver in both directions. The probe runs more safely and avoids accidental triggering of the probe in a non-measuring state.
The M code turns on the probe, and the probe communicates with the receiver in both directions. The probe runs more safely and avoids accidental triggering of the probe in a non-measuring state.
Ultra-low power consumption
Long battery life. The battery is used continuously for more than 2000 hours, which is leading in the industry.
Long battery life. The battery is used continuously for more than 2000 hours, which is leading in the industry.
Long triggering life
The structure, material, and process design are designed and verified in full accordance with the triggering life standard of more than 10 million times.
The structure, material, and process design are designed and verified in full accordance with the triggering life standard of more than 10 million times.
Unlimited channel technology
The industry’s unique unlimited channel technology.There is no interference between channels and channels. Solves the problem of limited channels in the industry and interference between the same channels.
The industry’s unique unlimited channel technology.There is no interference between channels and channels. Solves the problem of limited channels in the industry and interference between the same channels.
High stability
There is basically no abnormal alarm during the operation of the probe, and the operation of the probe is stable and reliable.
There is basically no abnormal alarm during the operation of the probe, and the operation of the probe is stable and reliable.
Sigillatura
IP 68 sealing level, which is the highest level in the industry. Besides, we use the anti-aging imported sealing material to make sure the best quality.
IP 68 sealing level, which is the highest level in the industry. Besides, we use the anti-aging imported sealing material to make sure the best quality.

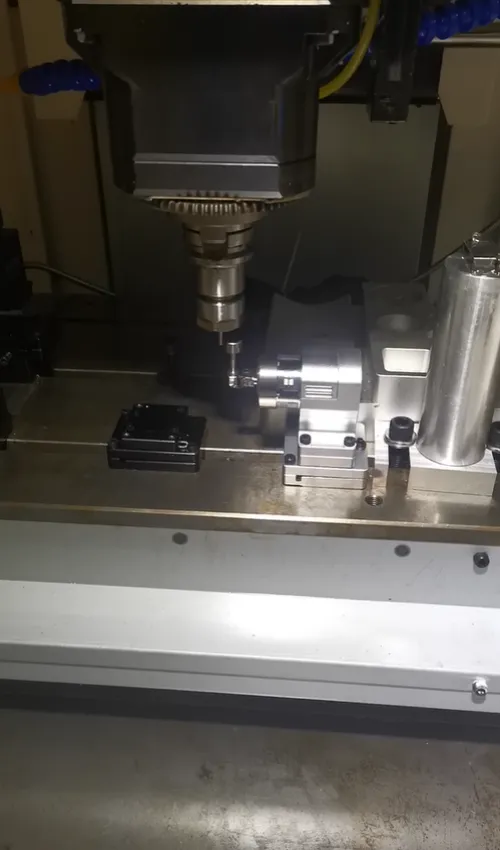

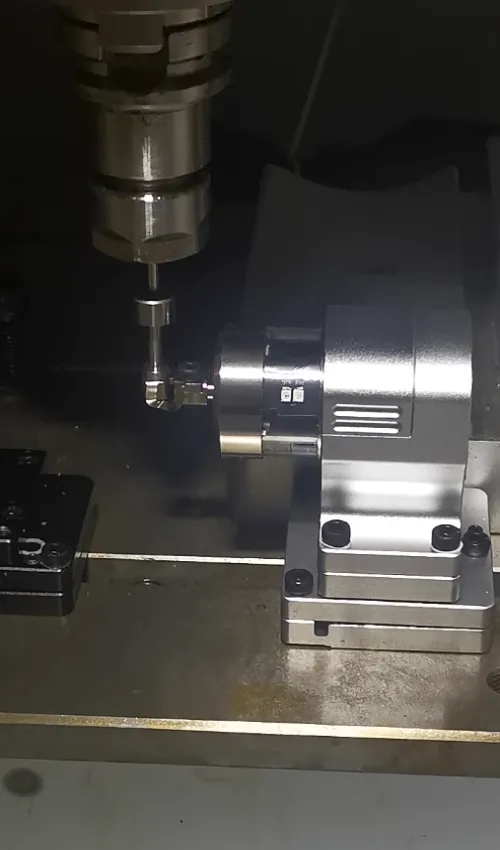

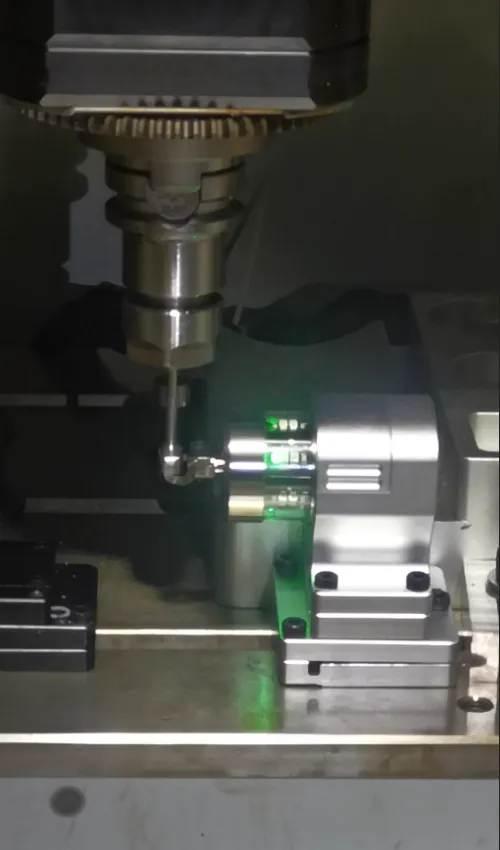

Main Feature of CNC Tool Length Setter
▪ The CNC tool length setter is with radio transmission signal
▪ Automatic measurement of tool length and diameter
▪ Suitable for all kinds of CNC machine tools with rotating workstations or multiple workstations
▪ Suitable for machine-added occasions where the signal transmission distance is far away or there are obstacles
▪ Automatic measurement of tool length and diameter
▪ Suitable for all kinds of CNC machine tools with rotating workstations or multiple workstations
▪ Suitable for machine-added occasions where the signal transmission distance is far away or there are obstacles

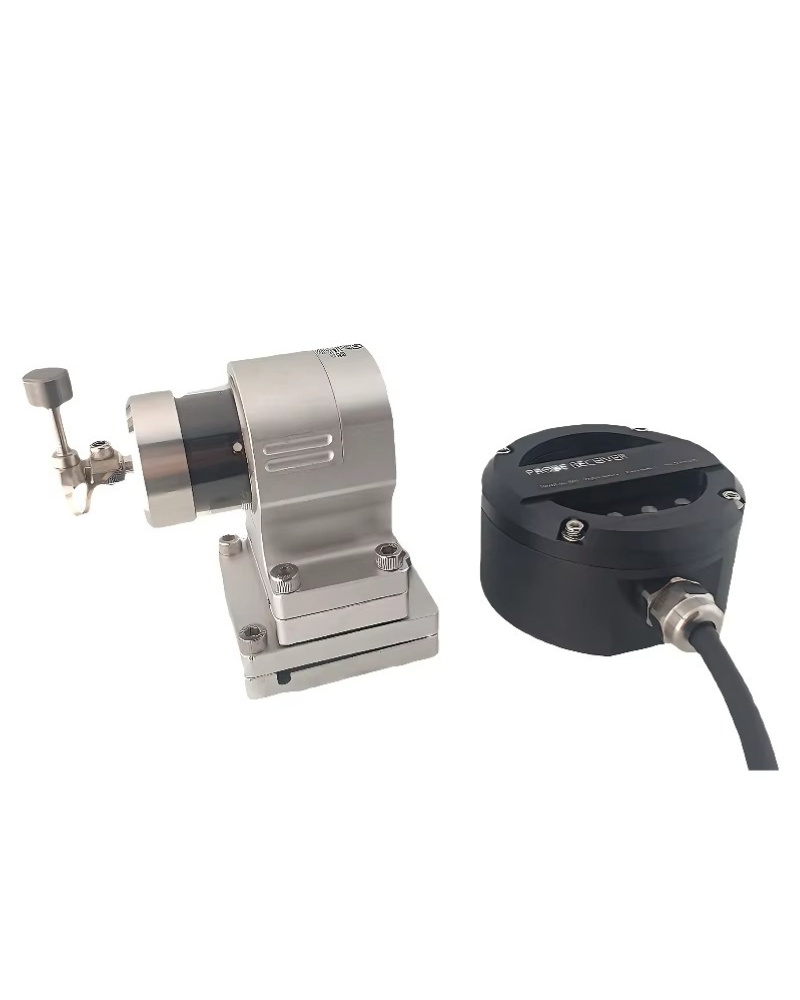

Introduction of DMTS-R Radio Receiver
The CNC tool length setter’s radio receiver is a newly designed and developed measurement product by Qidu Metrology, featuring the following advantages:
1. Compact structure, wide applicability, and easier installation for enhanced convenience.
2. Utilizes a universal adjustment mechanism, facilitating alignment with the probing head direction and providing greater flexibility compared to traditional mechanisms.
3. Installs with a powerful magnet on the machine tool metal component, eliminating the hassle of disassembling screws.
4. Bi-directional communication with the probing head, allowing real-time monitoring of the probing head’s status.
5. Supports both normally open and normally closed output modes to accommodate different installation requirements.
6. Features low battery and error alarm functions for added convenience.
7. Utilizes a one-to-one pairing with the probing head, providing strong resistance to interference.

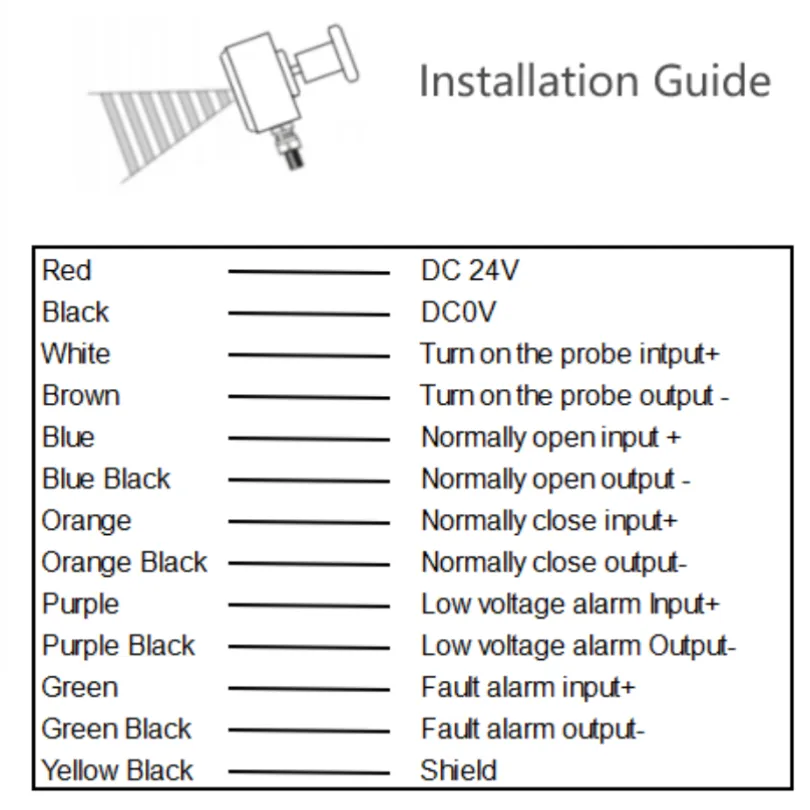

8. Different cable for different signal to make sure every detail was showed.
1. Compact structure, wide applicability, and easier installation for enhanced convenience.
2. Utilizes a universal adjustment mechanism, facilitating alignment with the probing head direction and providing greater flexibility compared to traditional mechanisms.
3. Installs with a powerful magnet on the machine tool metal component, eliminating the hassle of disassembling screws.
4. Bi-directional communication with the probing head, allowing real-time monitoring of the probing head’s status.
5. Supports both normally open and normally closed output modes to accommodate different installation requirements.
6. Features low battery and error alarm functions for added convenience.
7. Utilizes a one-to-one pairing with the probing head, providing strong resistance to interference.
8. Different cable for different signal to make sure every detail was showed.
